Coming soon!

New Battery Systems for Professional and Household
Use with Extremely Long Lifespan, Safety (Nonflammable), Minimal Losses, and High Power Relative to Capacity.

Read More

Top-notch Management

The manufacturer has developed a reliable Battery Management System (BMS) to manage the battery. The eSee flex system provides remote control of the inverter system.

Enormous power

Based on its capacity, the system allows up to 6 times the power relative to its capacity (6C), enabling it to offer various services.

Long battery life

25.000 to 100.000 cycles, depending on the average charging and discharging power. 10-year warranty and a 30-year expected lifespan under intensive use.

Safety

Non-flammable cells in a reliable fireproof enclosure with IP67 protection provide robust protection.

Minimal losses

The battery system operates at temperatures from -40°C to +55°C, meaning there is no energy loss for climate management.

System management

A battery system without continuous management and adjustment of settings lacks significant added value. Someone must know when to discharge energy and when to store it.

  • The price of energy in the market for future periods
  • Forecasting energy production
  • Understanding local needs

The energy market situation is constantly changing

The market price changes frequently. When to sell stored energy and when to charge the batteries?
eSee flex
Based on data from solar or wind power plants, the system forecasts production and makes decisions.
eSee flex
Based on past energy consumption, the system forecasts needs and manages the differences.
eSee flex

Why QB Quantum

  • Cost-effectiveness: no need to replace cells after a few years
  • Efficiency: additional services reduce ROI
  • Safety: Batteries do not catch fire
  • Reliability: The UPS system operates even when the grid is down
  • IP67 : suitable for both indoor and outdoor
  • Remote operating mode settings

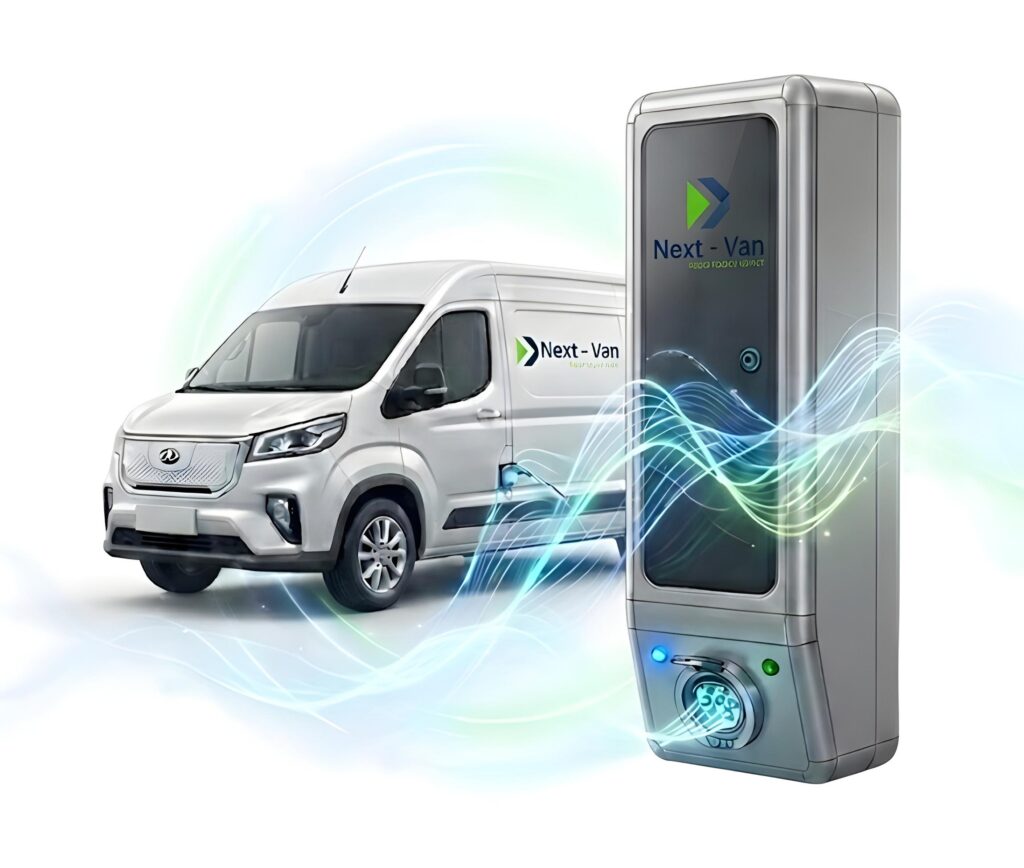

QB AC01 Single AC Charging Station

The QB AC01 (With Coiled Cable / With Socket) is a wallbox-sized public charging station that is suitable for both domestic and public environments due to its single power supply for one outlet, dynamic power, and complete connectivity.



Key Identifiers

  • Product Type : Electric vehicle AC charging device
  • Charging Mode : Mode 3
  • Charge Points : 1
  • Schuko Socket : No
  • Dimensions : 557 × 279 × 159 mm
  • Weight (Duo T) : ~10 kg
  • Standby Consumption : <10 W depending on configuration (WiFi, LTE, POS).

Charging Power: Charging up to 2 × 22.2 kW with Single Power Supply
Full Connectivity: Bluetooth (BLE 4.2) , WiFi, and compatibility with 4G, USB Modem
Load Balancing: Load Balancing up to 100 charges
Scheduled Charging: Management based on current energy prices
RFID & Security: RFID reader with identification and Inspection Key
OCPP Interoperability: OCPP 1.6 Json Interoperability and optional MID certified meter

The QB AC01 is available in both single-phase and three-phase versions, with adjustable rated current and power to suit a wide range of installation requirements. Compatible with ELEVAT App and Portal for full remote management and monitoring.

DESIGNED AND MANUFACTURED IN GERMANY

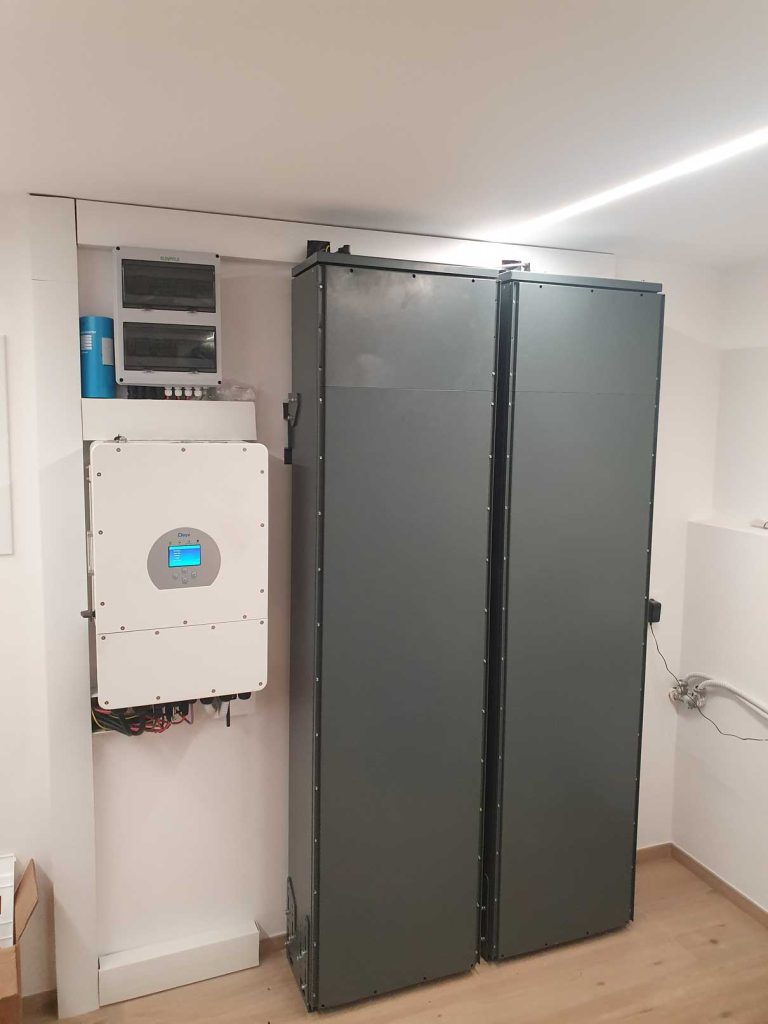

Stronix visokonaponski LTO baterijski ormari

Stronix visokonaponski LTO baterijski ormari (kapacitet od 15,45 kWh, snaga od 15 do 60 kW) po ormaru.

Glavne tehničke značajke jedne jedinice (15 kWh):
  • Kapacitet:
  • Ukupni kapacitet: 15,45 kWh
  • Iskoristivi kapacitet: 15,00 kWh
  • Dimenzije (v-š-d): 2200 × 533,2 × 311,5 mm
  • Masa: 345 kg
  • DC izlazna struja: 50 A (osnovna verzija), do 150 A
  • Napon baterije:
  • Prazna baterija: 348 V
  • Puna baterija: 420 V
  • Broj ćelija: 168
  • Kapacitet pojedine ćelije: 40 Ah (92 Wh po ćeliji)
  • Radni napon ćelije: 1,5 V do 2,8 V
  • Unutarnji otpor: < 1 mΩ (tijekom cijelog životnog vijeka)
  • Maksimalna struja punjenja/pražnjenja: 6C / 10C (10 sekundi)

Sigurnost i otpornost:
  • Otpornost na požar (REI): 90 minuta
  • Certifikati: EN 13501-2, EN 1363-1, IEC 62619, DIN EN 50272-2, UL 1642, UL 2054,UL 9540A
  • Materijal: LTO (litij-titanat-oksid)
  • Broj ciklusa do 80 % početnog kapaciteta: 25.000
  • Radna temperatura: od –40 °C do +55 °C

Management

Batteries should never be fully charged or completely discharged to ensure readiness for potential grid outages or cheap energy availability.

Optimal ROI

With the use of advanced services, returns are higher and more reliable.

Virtual power plants

The provider connects battery systems into a large virtual distributed system, which can operate in a larger market.
